Artec – JK Heavy Duty Raised Trackbar Bracket (JK4406)

$91.29

-

This heavy bracket is designed to take serious abuse and replace your front 30 or 44 JK factory trackbar bracket. The 1/4″ thick  precision cut and formed components of this setup out perform the competition.
NOTE: This bracket offers raised trackbar holes at 1.75″ and 3.0″. THIS BRACKET IS FOR USE WITH A DRAG LINK FLIP (WHICH REQUIRES A NEW TRACKBAR, MINIMUM 3″ LIFT and BUMPSTOP EXTENSIONS). This bracket has nothing to do with your lift amount.

Available on backorder

SKU: JK4406 Categories: , , , , , , Tags: , , , , , Brand:

Description

This product is currently categorized as a Certified American Original.

From the Artec Industries website:

JK Heavy duty Trackbar Bracket

This heavy bracket is designed to take serious abuse and replace your front 30 or 44 JK factory trackbar bracket. The 1/4″ thick  precision cut and formed components of this setup out perform the competition.
NOTE: This bracket offers raised trackbar holes at 1.75″ and 3.0″. THIS BRACKET IS FOR USE WITH A DRAG LINK FLIP (WHICH REQUIRES A NEW TRACKBAR, MINIMUM 3″ LIFT and BUMPSTOP EXTENSIONS). This bracket has nothing to do with your lift amount.
If your lift replaces your trackbar and mounts to the factory axle bracket (typical with a lift that includes an adjustable trackbar), choose FACTORY HEIGHT STOCK BRACKET REPLACEMENT.

Features include:

  • 1/4″ mild steel. Precision CNC cut and bent for great fitment.*

  • Replaces factory bracket for those with 2.0″ lift or higher.

  • Lifts factory sway bar mount 1.75″
  • Adjusts roll center 3 inches higher for greater stability.
  • Allows rotation of steering dampener to top side of tie rod for greater clearance.
  • Improves ground clearance over factory brackets.

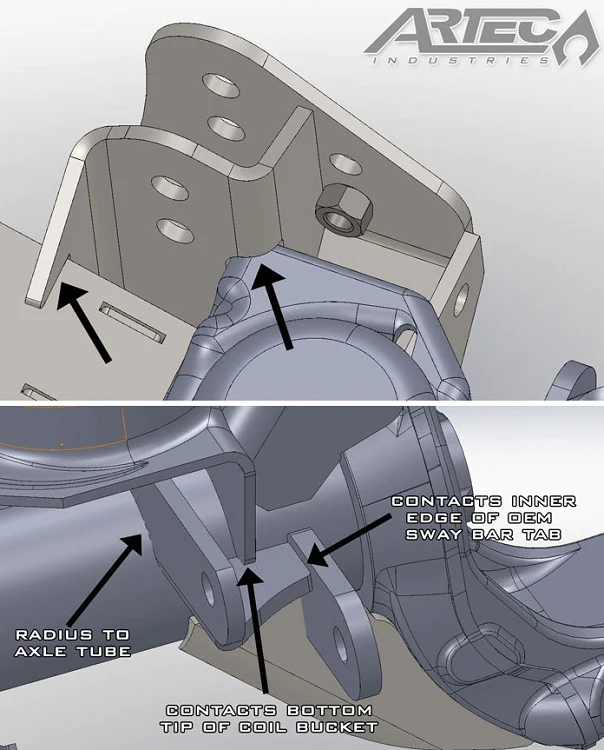

NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.

Additional information

Weight 6.55 lbs
Dimensions 8 × 8 × 5 in
Material

Steel
