ADAMS DRIVESHAFT JK REAR 1350 CV DRIVESHAFT [EXTREME DUTY SERIES] SOLID U-JOINT 4D

Description

New Rear Extreme Duty Jeep JK Wrangler Rubicon or Non Rubicon 1350 CV Driveshaft with Solid U-joints made by Adams Driveshaft.

Application:2007 to 2018 Jeep JK Wrangler’s 4 Door Models up to a 4″ Lift.

Please Note: Depending on the size and manufacturer of your lift kit, rear upper adjustable control arms may be needed to help set the pinion angle

Please Note: If you have Coil Overs, Rock Krawler brand Lift kit, a Lift Higher that 4.5″, have installed a different T-case, or a Different Differential Adams will need you to get them a measurement. Please conatct them with the Year, Make, Model, Lift Size, or call 702-568-5680 between the hours of 8:00 to 5:00 pm Pacific time Monday thru Friday after visiting their site and purchasing directly from them. If they don’t have your Measurement from a previous build with the same setup, they may need you to provide a measurement. You can use this measurement chart below to get the measurement.

This Extreme Duty Solid 1350 CV Driveshaft will work up to 42″ Tall Tires. After that you would need to go with Adams [Insane Duty 1410 Solid U-joint Series] that is coming soon. Bigger tires adds more Weight, Traction, and more Pressure on your Drivetrain Components like your Driveshafts, Axles, Gears, Etc so you want to make sure you are buying the right driveshaft for your Jeep.

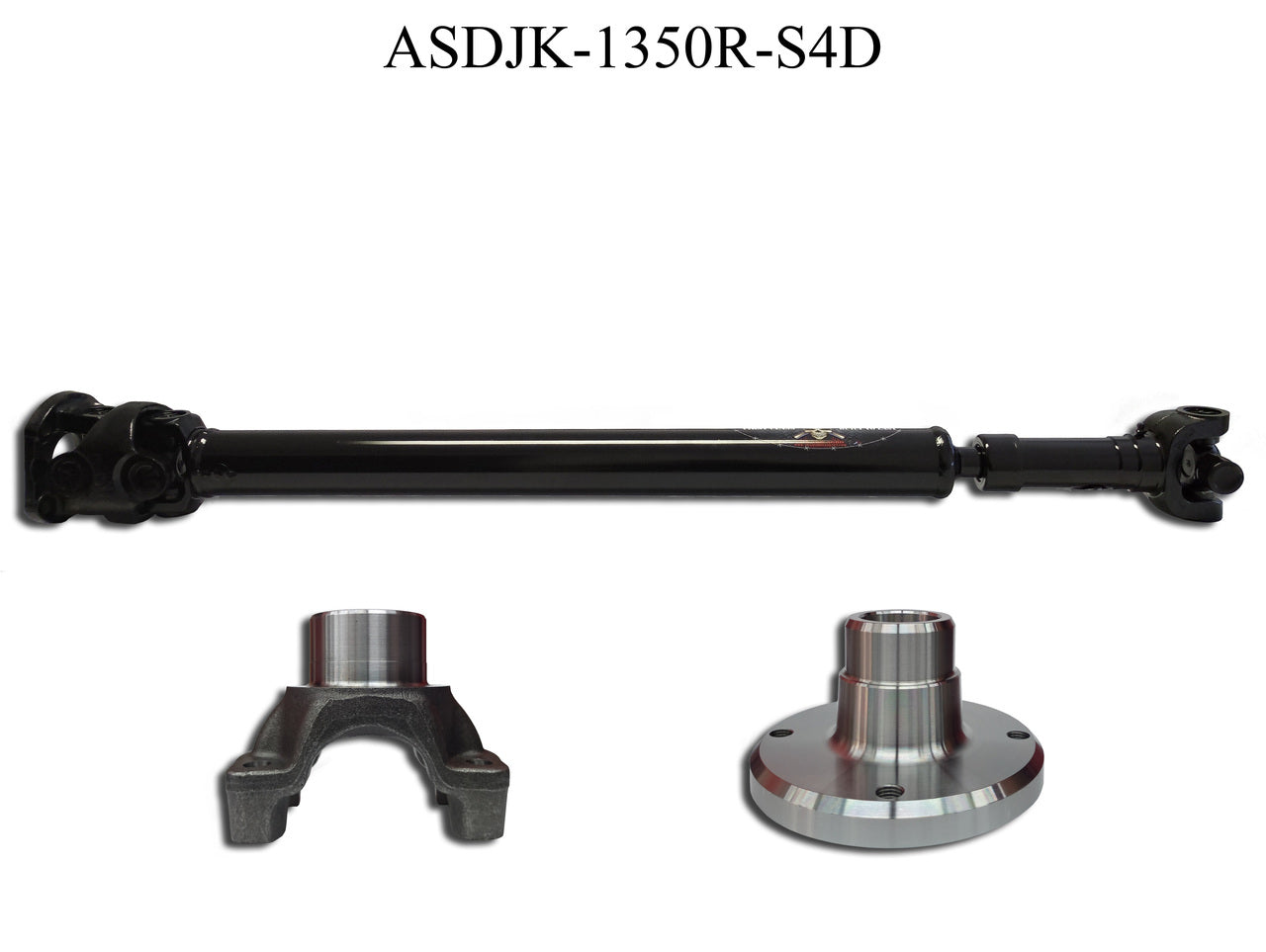

This Item will include the following parts:

[1] 1350 Solid U-joint 2 1/2″ X .095 Wall Rock Crawler CV Driveshaft. Lifetime Warranty if you twist our Tube or break a Weld due to Torque.

[1] 1350 Rear Transfer Case Output Shaft Flange Yoke.

[1] 1350 Rear Dana 44 Pinion Yoke.

[1] Set of 1350 U-bolts.

[1] Set of Grade 10 CV Bolts. There is four bolts with small heads so they are easier to install.

Driveshaft comes painted Gloss Black Show Quality.

Adams Driveshaft Warranty Information

DRIVESHAFT: Lifetime Warranty on the Welds and Tubing if they break due to torque. All other Components have a One Year Warranty against any defects. No warranty if components break due to bad angles. The CV Kits and Slip n Stub are wear Items and should be greased about every three months or three thousand mile what ever comes first. No warranty if the CV Kit, or Slip n Stub are not maintained properly.
