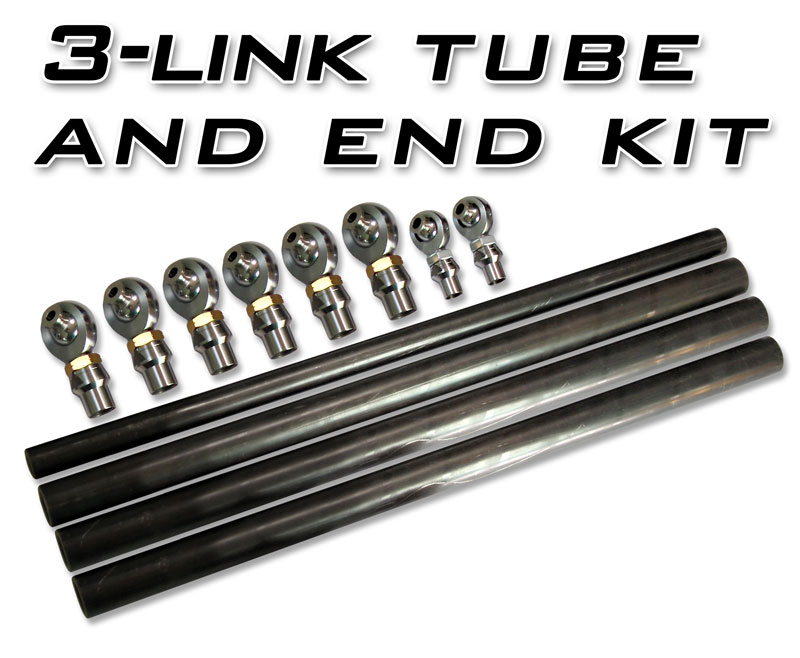

3 Link Tube and Rod End Kit 1.25 Krawler Joints Artec Industries

Description

All the tube and Rod End Components needed to customize your own 3-link setup. The heat and cryogenically treated chromoly rod ends are the strongest and longest lasting on the market. The included tube adapters feature machined wrench flats for easy adjustments and tightening and conform to the outer diameter of the tubing it welds to.

The included stainless steel high misalignment spacers allow for maximum articulation in the rod end. As an option, this kit offers four foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed for your particular vehicle.
Includes:

• 1 RH, 1 LH – 7/8 inch -14tpi x 3/4 inch bore rod ends for panhard
• 1 RH, 1 LH – 7/8 inch -14tpi Tube Adapters for panhard
• 1 RH, 1 LH – 7/8 inch -14tpi Jam nuts for panhard
• 4 – 3/4 inch-9/16 inch High Misalignment Spacers
• 3 RH, 3 LH – 1.25 inch -12tpi x 1.0 inch bore rod ends
• 3 RH, 3 LH – 1.25 inch -12tpi Tube Adapters
• 3 RH, 3 LH – 1.25 inch -12tpi Jam nuts
• 12 – 1.0 inch-3/4 inch High Misalignment Spacers
• 1 – 4 ft 1.5 inch OD .250 inch thick DOM tubing
• 3 – 4 ft 2.0 inch OD .250 inch thick DOM tubing

Features:

• 3 Link Tube and Rod End Kit
• 1.25 Krawler Joints
• Sold As: Kit
